AeroDR 3 1417S

The AeroDR line-up, which responds to the "Want to see" needs of customers around the world, now includes the new AeroDR 3 1417S.
The evolved platform and low electrical noise designdelivers higher image quality and greaterrobustness than previous models.AeroDR 3 1417S is designed for ease of useand can meet the needs ofa wide range of medical practices.

Advanced model with unwavering relability

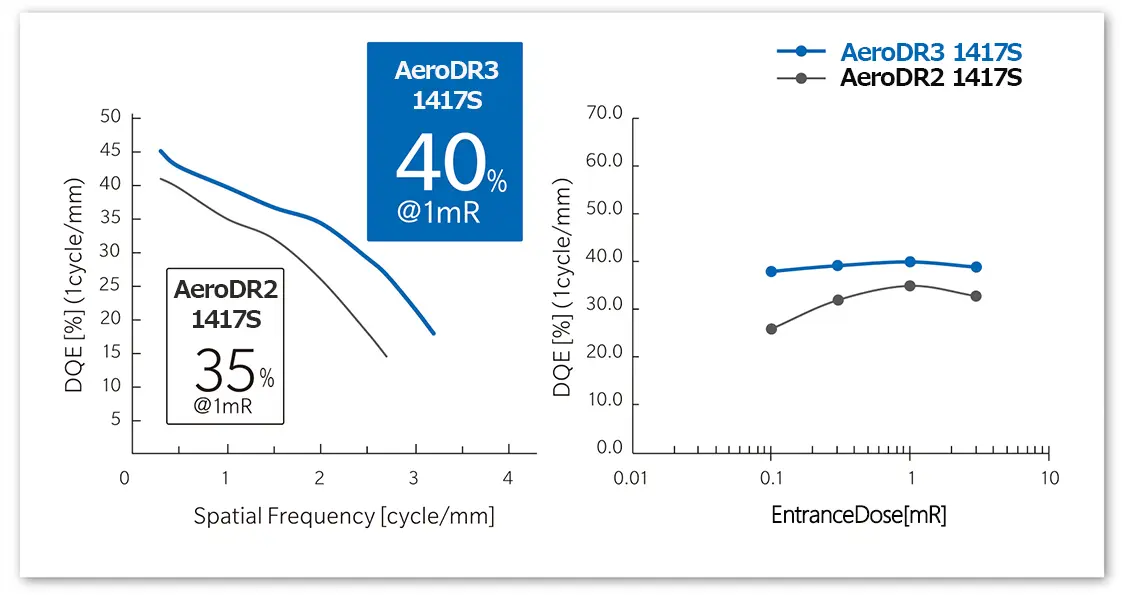

High DQE is achieved by renewing the configuration of the 150μm glass TFT substrate and installing a low electrical noise read out IC.　The improved DQE enables 20% reduction in dose to obtain the same image quality as AeroDR 1417S.

Easy handling that gives a sense of lightweight

An easy-to-grasp panel helps support the operator's work in a variety of X-ray examination situations. It can reduce the stress of operators who may experience fatigue after use or anxiety of dropping the panel.

Compliant with IP56 waterproof/dustproof standard

Compliant with the IP56 waterproof/dustproof standard. By adopting a structure where a packing is even when subjected to shocks such as drops.

Reliable load bearing performance

The layout in the housing structure has been optimized for every load situation. The detector is equipped with a high load capacity to withstand various examination situations.

Antibacterial carbon enclosure

An antibacterial material containing Ag (silver) is kneaded into the enclosure material of AeroDR 3 1417S. The antibacterial agent is evenly dispersed in the material in the thickness direction. Antibacterial property is not lost due to scratches in daily use.
As a disinfectant solution for the AeroDR 3 detector, up to 1% concentration of sodium hypochlorite solution can be used. The body surface shows no deterioration even when using a high-concentration disinfectant solution to wipe soil of patient's blood or urine.

Available disinfectant
- Ethanol for disinfection
- Isopropanol for disinfection
- Commercial chlorine bleach,
or 1% Hypochlorite
(5-fold dilution of household bleach)

AeroDR 3 Panel Roaming

The roaming function for sharing the AeroDR detector among multiple X-ray rooms has evolved. Roaming can be easily set with a simple button operation on the detector side. The backup of the detector between X-ray rooms and the sharing of the detector with mobile devices enable more efficient panel operation.

Aero Storage

Equipped with the Aero Storage function that enables mobile X-ray imaging on the detector alone. Up to 100 images can be stored inside the detector and easily exported to the CS-7 console after performing radiography to match them with patient information. When combined with the optional Mobile Terminal, the detector’s status and captured image previews can be checked on hand. This solution is ideal for users who want take small volumes of images quickly.

"Positioning-i" to support positioning judgment

AI^※ supports general radiography operations. Two positioning judgment support functions help to reduce the number of re-radiography shots and improve operational efficiency.

■Positioning accuracy judgment
AI detects the amount of misalignment at key positioning points and supports the judgment for re-radiography.

■Error detection(right/left, AP/PA)
AI detects inconsistencies between the order information and the image.

※ Deep learning, an AI technology, was employed in the design. The performance and accuracy of this function will not automatically change after installation. When a judgment result is displayed by the positioning judgment support function or the right / left, AP/PA judgment support function, be sure to check the image before re-radiographing.

Realizes standardization of re-radiography criteria and reduction of decision-making time.

Prevents diagnosis with images that differ from the order.

Tube and Gauze Image Enhancement

This image processing is specially designed to make it easier to check the remaining objects in surgical imaging and to confirm the position and route of the catheter tip. Objects that are difficult to detect with normal image processing can be highlighted.

Image Processing Engine "REALISM" for AeroDR 3 1417S

"REALISM" is an image processing engine developed to maximize the image quality performance of AeroDR 3. Thanks to its improved frequency enhancement processing, it can more faithfully depict both low and high frequency regions, and realistically produce images of fine structures such as bone trabeculae and of thick body parts.

Maintaining contrast while depicting the whole image more clearly

With improved dynamic range compression processing and newly introduced LUT, stereoscopic images are provided by expressing individual structures from low-dose to high-dose regions.
